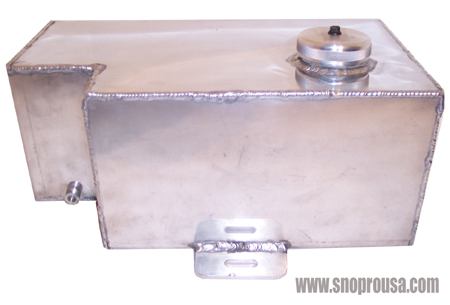

Oval
Track Racing
3.5 Gallon Capacity
Part No. SP-USA-002
15.5" Total Width X 5"
High Back / 7" High Front X 10" Deep
WEIGHT: 5.5 lbs as shown.
6061 Aluminum Billet
Cap w/ Threaded Breather Hole
3/16" thick Aluminum
Mount on front and back of tank.
RIGHT SIDE
FRONT
VIEW: Threaded Fuel Outlet is at the lowest point on
Right
Side to optimize fuel drawn from tank when oval racing.
Cut-away design permits
easy access to fuel fitting / filter.
Left
Side: 7" at high and 5"at low side next to seat. Measures 10" front
to back.
$375.00 Includes Insured
Shipping within the USA
Mounting Hardware includes two tunnel studs with rubber & metal washers.
Fuel Tank Studs mount center on the Tunnel and the fuel tank fits secured to the studs.
After two studs are intalled the tank can be removed fast by two 5/16" lock nuts.
Brass Threaded Fuel Fitting included.
